Pneumatic PN Flex / Zip
END EFFECTORS AND GRIPPERS SEEN IN THE PICTURES ABOVE CAN BE ATTACHED ALSO TO OTHER PNEUMATIC PN SERIES OR LIFTRONICâ ACCORDING THE HANDLING OPERATION TO BE DONE.
PICTURE GALLERY
MANUFACTURING CRITERIA AND MATERIALS USED FOLLOWING NORME CEE UNDER ISO 9001 / 2000

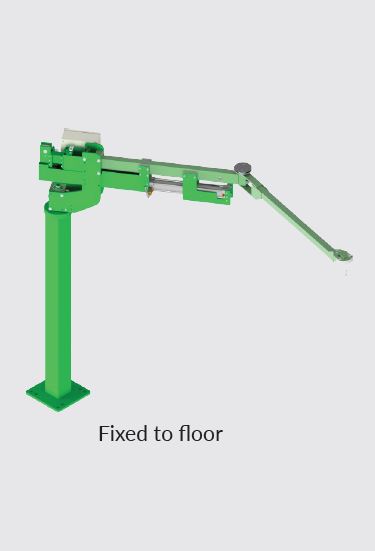

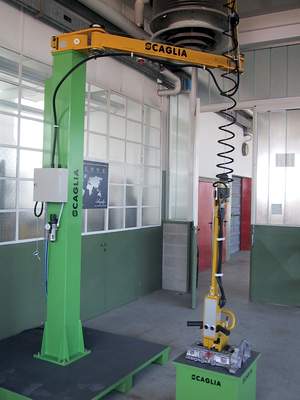

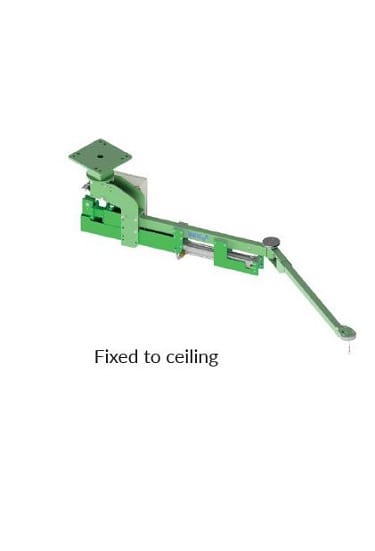

PNEUMATIC PN FLEX
AUTOMOTIVE MOTOR BASE
AUTOMOTIVE MOTOR HEAD

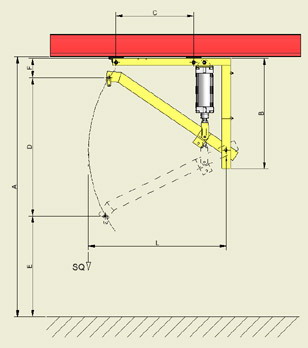

PNEUMATIC PN ZIP

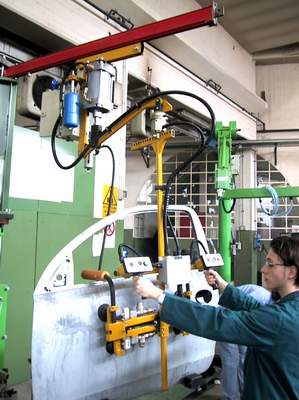

AUTOMOTIVE BODY PARTS HANDLING
BANGKOK OFFICE
PNEUMATIC BALANCERS

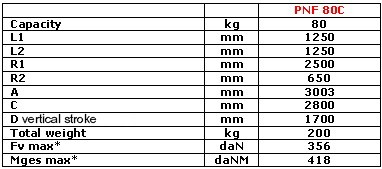

SPECIFICATIONS

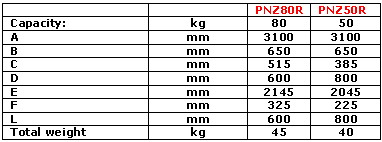

SPECIFICATIONS
* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND LOAD OFF-SET OVER THAN ARM LENGTH R1.
* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND LOAD OFF-SET OVER THAN ARM LENGTH R1.
Technical features
Max Capacity: 80 kg
Control: pneumatic
Air pressure: 6,0 Bar
Working temperature: from +5° to +50° C
Noise Level: <70 dB
Optional feature: suitable for applications in controlled environment with danger of explosion, according to the ATEX
Safety devices: equipped with safety devices that retain the grip on the load, even in case of loss of air supply.
Technical features
Max Capacity: 80 kg
Max lifting speed: 0,75 m/sec
Control: pneumatic
Air pressure: 6,0 Bar
Working temperature: from +5° to +50° C
Noise Level: <70 dB
Optional feature: suitable for applications in controlled environment with danger of explosion, according to the ATEX
Safety devices: equipped with safety devices that retain the grip on the load, even in case of loss of air supply.
