THANKS FOR VISITING US

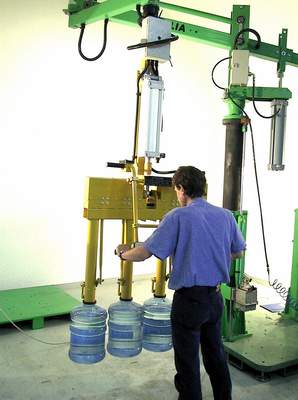

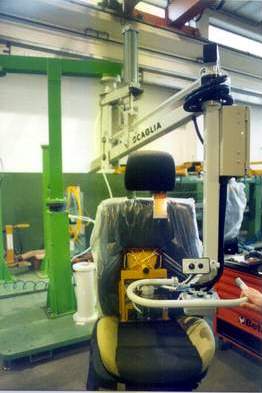

END EFFECTORS AND GRIPPERS SEEN IN THE PICTURES ABOVE CAN BE ATTACHED ALSO TO OTHER PNEUMATIC PN SERIES OR LIFTRONICâ ACCORDING THE HANDLING OPERATION TO BE DONE.

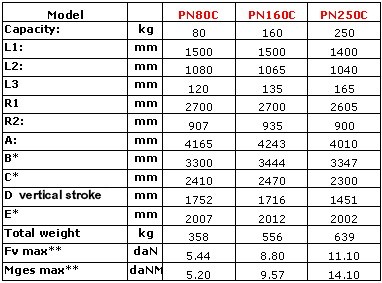

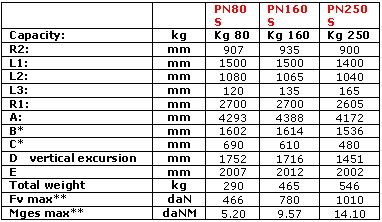

SPECIFICATIONS
AUTOMATIC SELF BALANCING SYSTEM AVAILABLE
BANGKOK OFFICE
Indeva Pneumatic PN Ergo

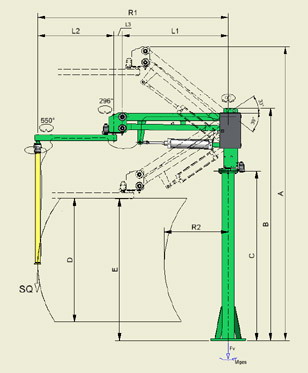

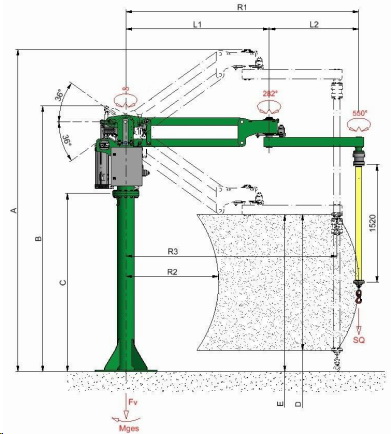

PN Ergo (C)-Column Version

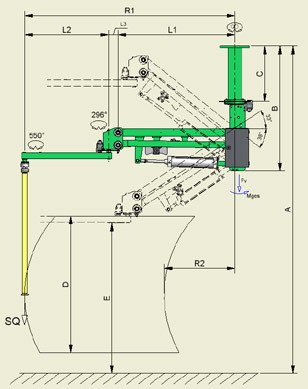

PN Ergo (S)-Ceiling-Rail Version
* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND LOAD OFF-SET OVER THAN ARM LENGTH R1.
* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND LOAD OFF-SET OVER THAN ARM LENGTH R1.
Technical features
Max lifting speed: 0,5 m/sec
Control: pneumatico
Air pressure: 6,5 Bar minimum
Working temperature: from +5° to +50° C
Noise Level: <70 dB
Optional feature: suitable for applications in controlled environment with danger of explosion, according to the ATEX
Safety devices: equipped with safety devices that retain the rip on the load, even in case of loss of air supply. Special brakes keep the arm and gripping tool still when not used
C. F. DIPIETRO ASIA CO., LTD
Company Registered in 2544 / 2001
MANUFACTURING CRITERIA AND MATERIALS USED FOLLOWING NORME CE UNDER UNI EN ISO 9001 / 2015
NONTHABURI . THAILAND
I
N
D
E
V
A
B
R
A
N
D
M
A
D
E
I
N
I
T
A
L
Y
I
N
D
E
V
A
B
R
A
N
D
M
A
D
E
I
N
I
T
A
L
Y

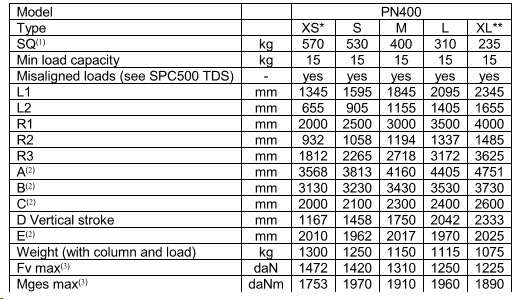

NEW PN Ergo 400 (C)-Column Version
