Pneumatic PN Compatto
END EFFECTORS AND GRIPPERS SEEN IN THE PICTURES ABOVE CAN BE ATTACHED ALSO TO PNEUMATIC PN ERGO OR LIFTRONICâ ACCORDING THE HANDLING OPERATION TO BE DONE.

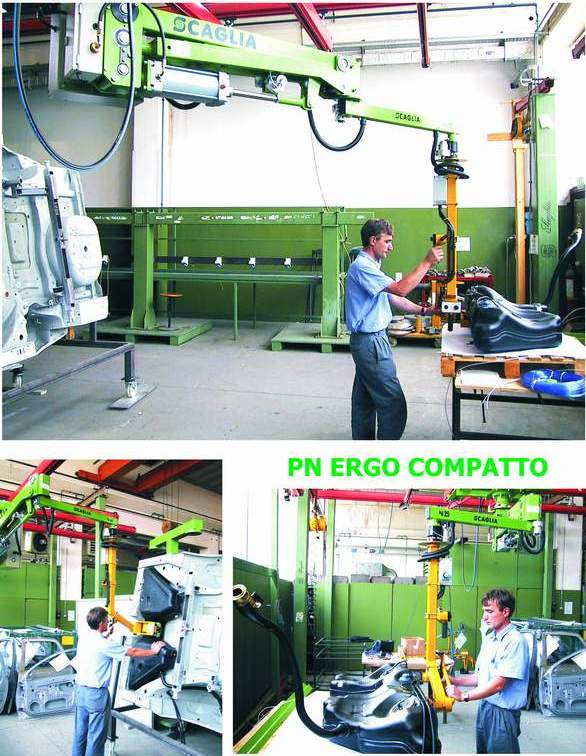

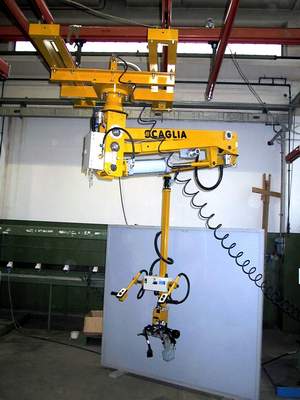

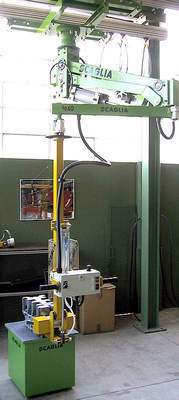

PICTURE GALLERY

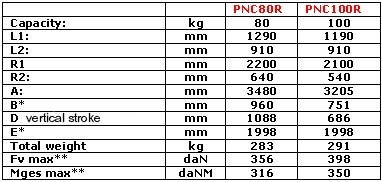

- SIZES UP TO 80 Kg / UP TO 100 Kg
BANGKOK OFFICE

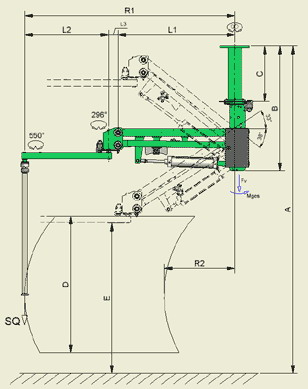

* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND LOAD OFF-SET OVER THAN ARM LENGTH R1.
Technical features
Max lifting speed: 0,5 m/sec
Rotation around column axis: continuous
Rotation around tool axis: standard : 550°; optional:continuous
Control: pneumatico
Air pressure: 6,5 Bar minimum
Working temperature: from +5° to +50° C
Noise Level: <70 dB
Optional feature: suitable for applications in controlled environment with danger of explosion, according to the ATEX
Safety devices: equipped with safety devices that retain the grip on the load, even in case of loss of air supply. Special brakes keep the arm and gripping tool still when not used.
