Liftronic® Pro Indeva

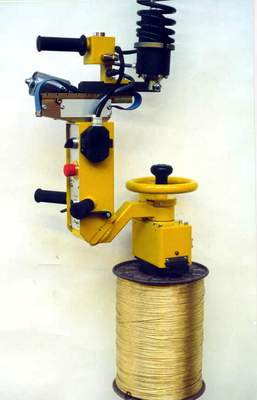

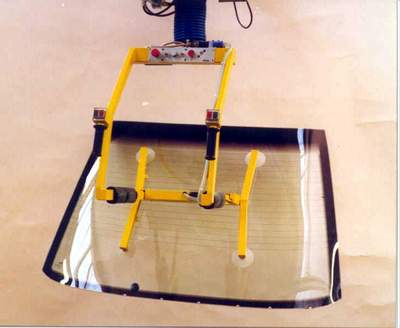

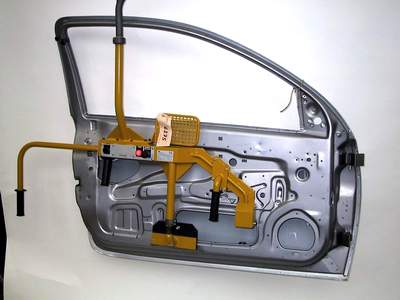

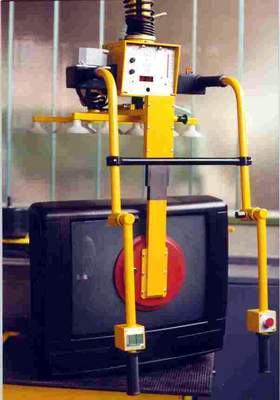

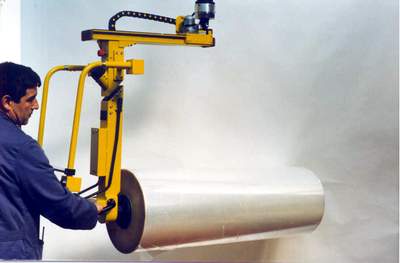

END EFFECTORS AND GRIPPERS SEEN IN THE PICTURES ABOVE CAN BE ATTACHED ALSO TO LIFTRONICâ EASY OR PNEUMATIC PN SERIES ACCORDING THE HANDLING OPERATION TO BE DONE.

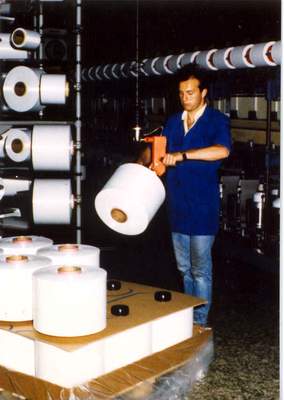

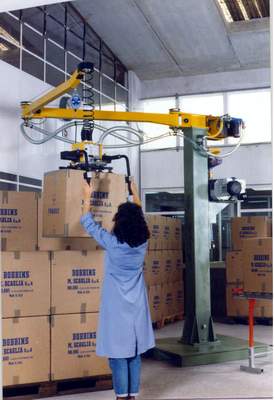

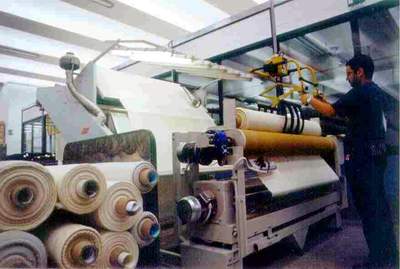

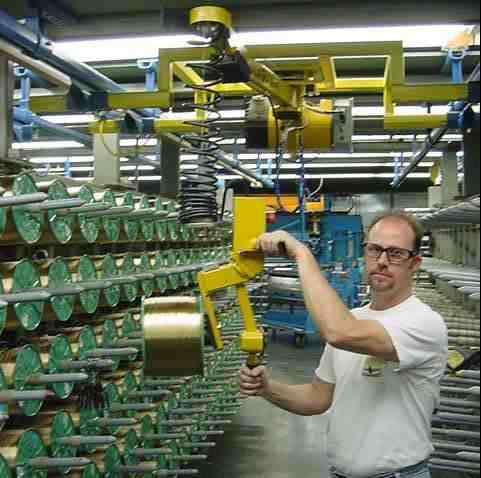

PICTURE GALLERY
BANGKOK OFFICE

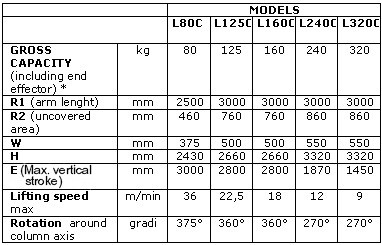

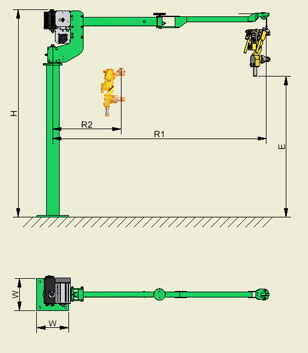

COLUMN VERSION (C)

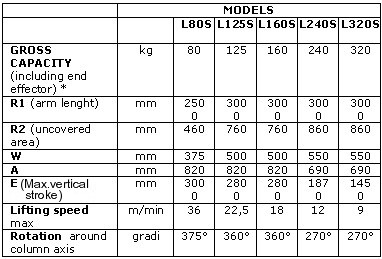

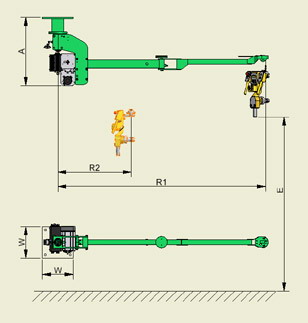

CEILING VERSION (S)

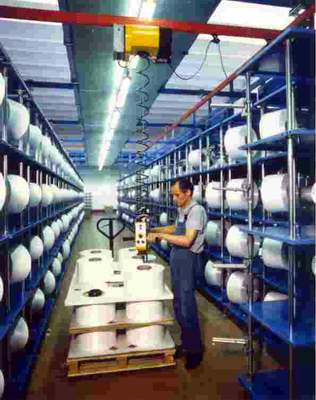

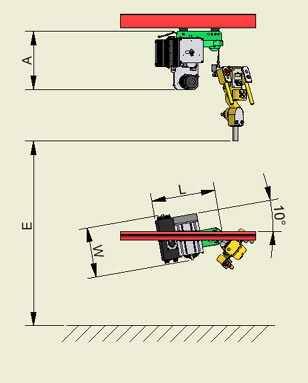

RAIL VERSION (R)

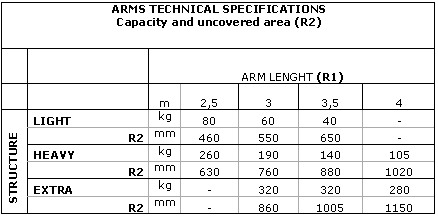

*ARMS SPECIFICATIONS ARE APPLICABLE ALSO TO LIFTRONIC EASY®
FOR COLUMN AND CEILING VERSIONS ONLY
* LIFTRONIC EASYâ MUST BE CHOSEN INSTEAD OF LIFTRONICâ  WHEN THE END EFFECTOR IS SIMPLE AND DOESN'T REQUIRE CUSTOMIZED LOGIC AND HARDWARE.
* GROSS CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND ON DUTY CYCLE TIME.
ALL MODELS ARE FULLY AUTOMATIC SELF BALANCING SYSTEM

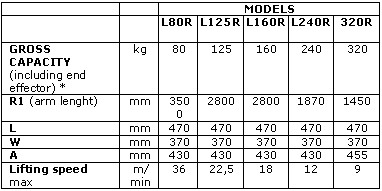

SPECIFICATIONS
I.A.Ds SYSTEM COMPLIANCE
Technical features
Max capacity: 320 kg
Max working radius: 4000  mm
Max lifting speed: 0,6 m/sec
Control: electronic
Power supply: 110/ 230 Volt A/C – 50/60 Hz
Max power consumption: 700 VA
Enclosure protection: IP 54
Working temperature: from 0° to 40° C
Noise level: 40 dB (A)
Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor

C. F. DIPIETRO ASIA CO., LTD

Company Registered  in 2544 / 2001
"Your Reliable Partner in Thailand"
MANUFACTURING CRITERIA AND MATERIALS USED FOLLOWING NORME CE UNDER UNI EN ISO 9001 / 2015
