Indeva Liftronic® Easy 5

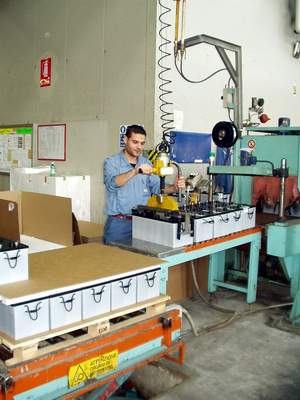

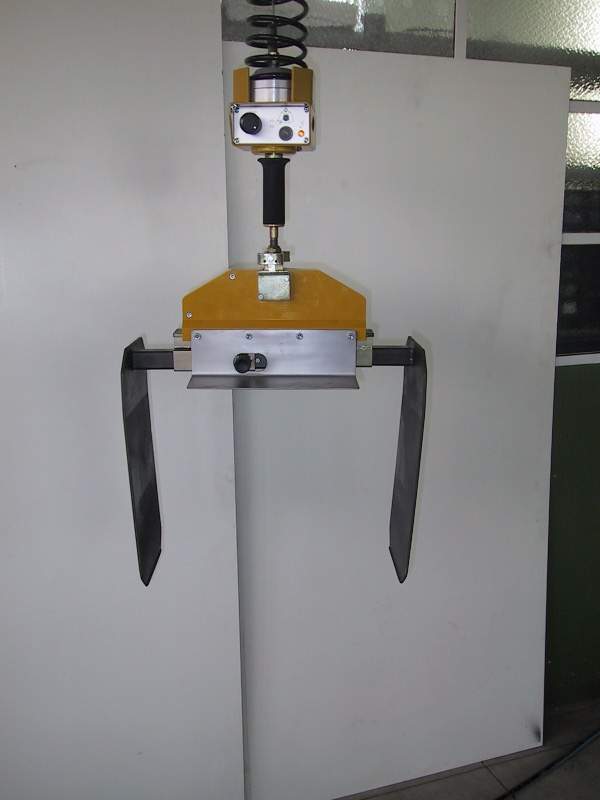

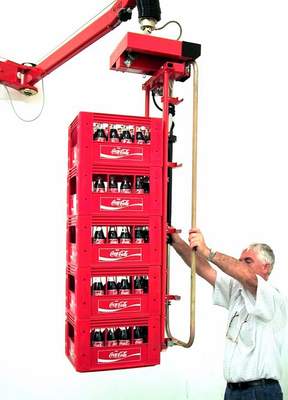

END EFFECTORS AND GRIPPERS SEEN IN THE PICTURES ABOVE CAN BE ATTACHED ALSO TO LIFTRONICâ OR PNEUMATIC PN SERIES ACCORDING THE HANDLING OPERATION TO BE DONE.

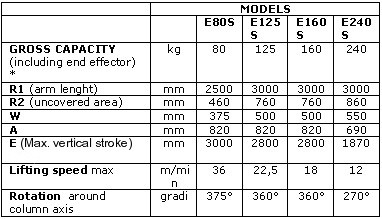

SPECIFICATIONS

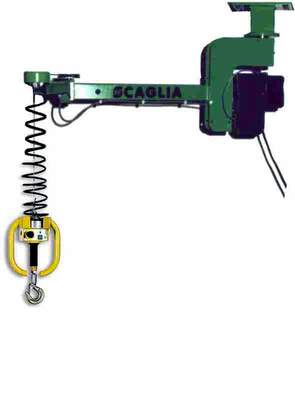

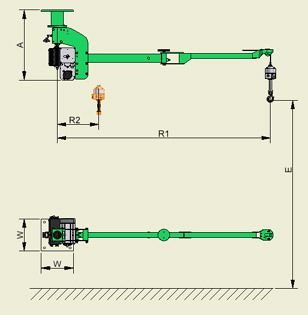

CEILING VERSION (S)

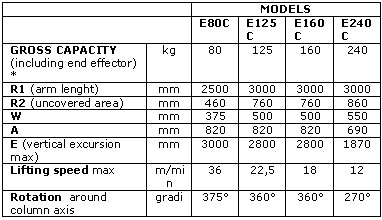

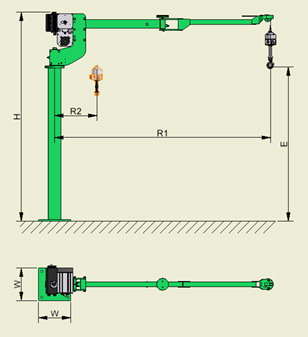

COLUMN VERSION (C)
ALL MODELS ARE FULLY AUTOMATIC SELF BALANCING SYSTEM
I.A.Ds SYSTEM COMPLIANCE
BANGKOK OFFICE

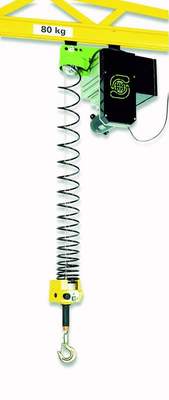

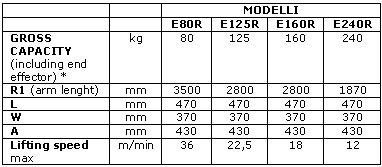

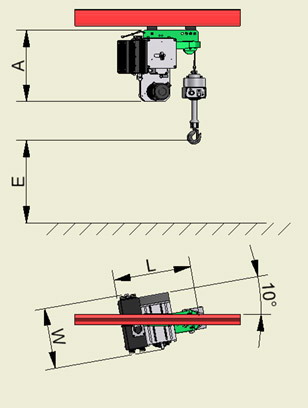

RAIL VERSION (R)
* LIFTRONICâ MUST BE CHOSEN INSTEAD OF LIFTRONICâ EASY WHEN THE END EFFECTOR IS COMPLEX AND REQUIRES CUSTOMIZED LOGIC AND HARDWARE.
* NET CAPACITY DEPENDS ON THE END EFFECTOR WEIGHT AND ON DUTY CYCLE TIME.
Technical features
Max capacity:  240 kg
Max working radius:  4000 mm
Max lifting speed: 0,6 m/sec
Control: electronic
Power supply: 110/ 230 Volt A/C – 50/60 Hz
Max power consumption: 700 VA
Enclosure protection: IP 54
Working temperature: from 0° to 40° C
Noise level: 40 dB (A)
Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor
