SPECIFICATIONS
AUTOMATIC SELF BALANCING SYSTEM AVAILABLE
BANGKOK OFFICE
Indeva Liftronic® Air

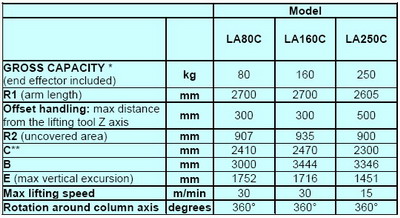

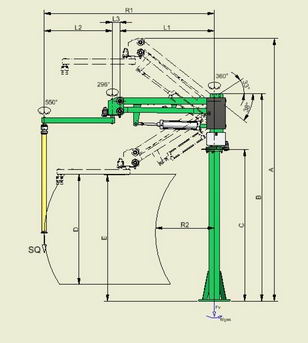

Liftronic® Air -Column Version

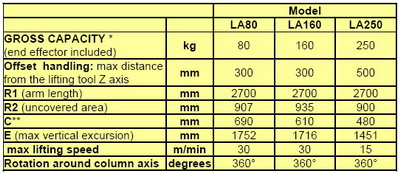

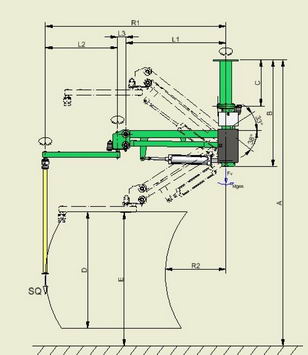

Liftronic® Air-Ceiling-Rail Version
* Gross capacity depends on the end effector weight and load OFF-SET over than arm length R1.
Technical features
Max Capacity: 250 Kg
Max Working Radius 2700 mm
Max lifting speed: 0,5 m/sec
Control: electronic
Power Supply: 115 or 230 VAC - 50/60 Hz
Power consumption: 100 VA
Enclosure protection: IP 54
Air pressure: 6,5 Bar minimum
Working temperature: from 0° to +40° C
Noise Level: <70 dB

C. F. DIPIETRO ASIA CO., LTD

Company Registered  in 2544 / 2001
LOAD HANDLING SYSTEMS LIFTRONIC® AIR:

- BALANCER INDEVA FEATURING PNEUMATIC LIFTING FORCE AND ELECTRONIC CONTROL

Latest industrial manipulators generation of the INDEVA family. They combine the strength of traditional pneumatic manipulators with the intelligence of the INDEVA.

Their power for lifting is pneumatic, but they are electronically controlled.

They are suitable for handling offset loads.

Models are available from 80 to 250 kg, and can be supplied either column, ceiling or overhead rail mounted.

Compared to traditional pneumatically controlled manipulators, Liftronic Air offers important advantages which help improve safety, ergonomics and productivity.

Nominal load capacity is according to air supply: minimum 6,5 Bar.
**This value can be modified within certain limitations in order to satisfy special customer requirements.

Nominal load capacity is according to air supply: minimum 6,5 Bar.
**This value can be modified within certain limitations in order to satisfy special customer requirements.

* Net capacity depends on the end effector weight and load OFF-SET over than arm length R1.
MANUFACTURING CRITERIA AND MATERIALS USED FOLLOWING NORME CE UNDER UNI EN ISO 9001 / 2015
